Raspberry Pi as APRS digipeater with digi_ned : Cabling (2/?)

Here is the used equipment :
* RaspBerry Pi (B) 512Mo
* Modem PacComm TINY-2
* Transceiver Alcatel ATR 2680
* USB<-->TTL adapter chipset CP210

To avoid using a MAX232 interface to convert RS232 to TTL, I used TTL connector on the PacComm TINY-2.

Cablig is as follow :
PIN……………….USB Adapter
1 ————-> TXD
5 ————-> RXD
6 ————-> GROUND

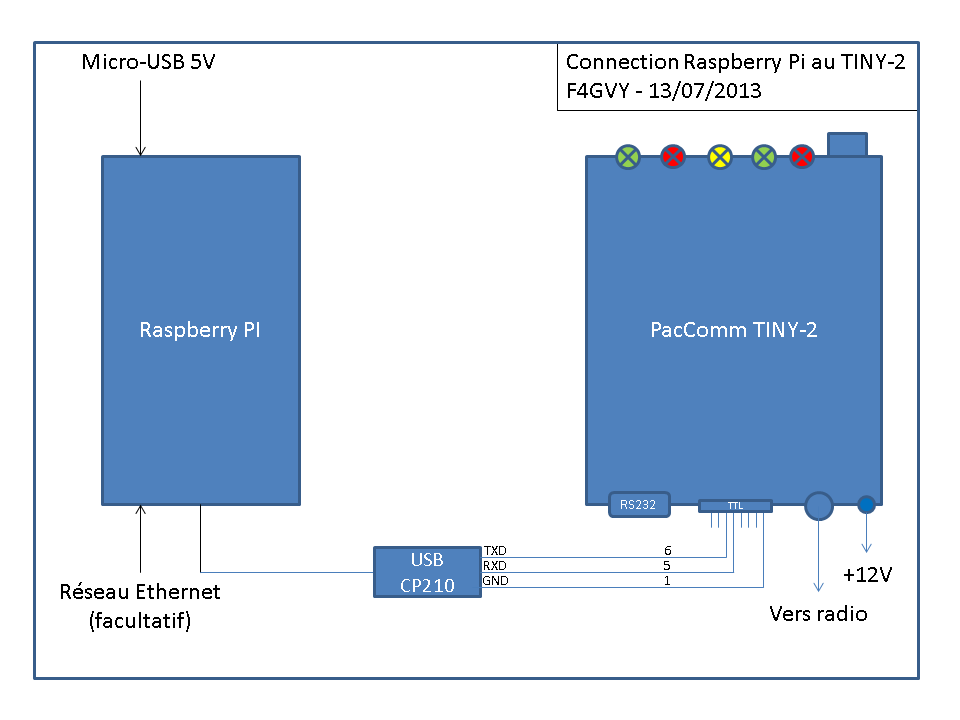

Complete diagram (click to enlarge) :
Cabling PacComm TINY-2 with Raspberry PI
